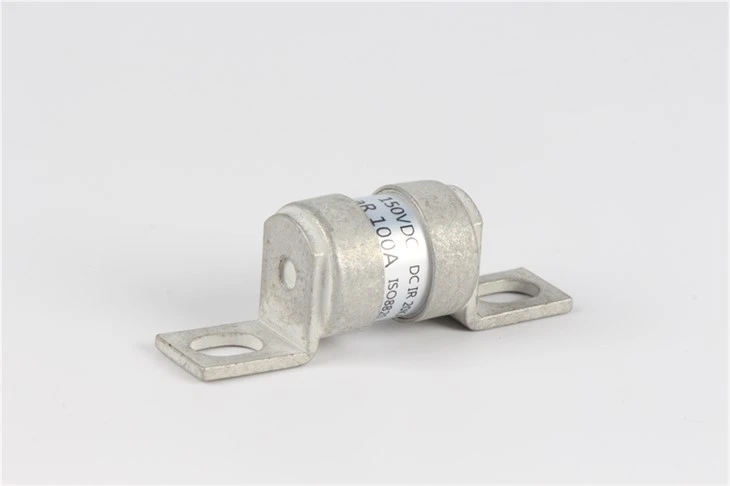

Dissmann BS88-HBD Series Fuse 240VAC/150VDC British Standard

Dissmann BS88-HBD Series Fuse 240VAC/150VDC British Standard equal to SINOFUSE RS308-HB-2G 250VAC Bolted High Speed Fuse

• Compliant with RoHS, has completed CCC and UL certification.
• This series of products are round tube bolt connection fuses for partial range protection.
• They have the characteristics of strong current limiting capacity, high breaking capacity, and fast breaking speed of short circuit. They are suitable for semiconductor equipment such as frequency converters, rectifiers, inverters, and various power supplies. , as well as short-circuit and backup protection for batteries, motors, capacitors, and other equipment and devices.

Dimension Drawings：

LEP（filled）/LET（not filled）

Time-current curve of the British standard fuse：

Peak let-through curve of the BS88 fuse：

Normal use conditions and parameter correction ：

• The fuse works under the following normal use conditions and does not require additional corrections.
• When the normal use conditions are exceeded, if it is within the allowable use conditions, some parameters may need to be corrected or consulted.
• If it exceeds the scope of the allowable use conditions, you should consult our company, and carry out the work suitability assessment and test of the conditions.
• It is recommended that the current value of long-term flow should not exceed 80% of the rated current.
• For over-temperature use, please refer to the temperature evaluation curve. ambient air temperature Normal use conditions: -5°C~40°C.
• Allowable operating conditions: -40°C~85°C.

Application of the BS88 fuse：

Other fuse and fuse houlder you can choose from us:
